Products Details:

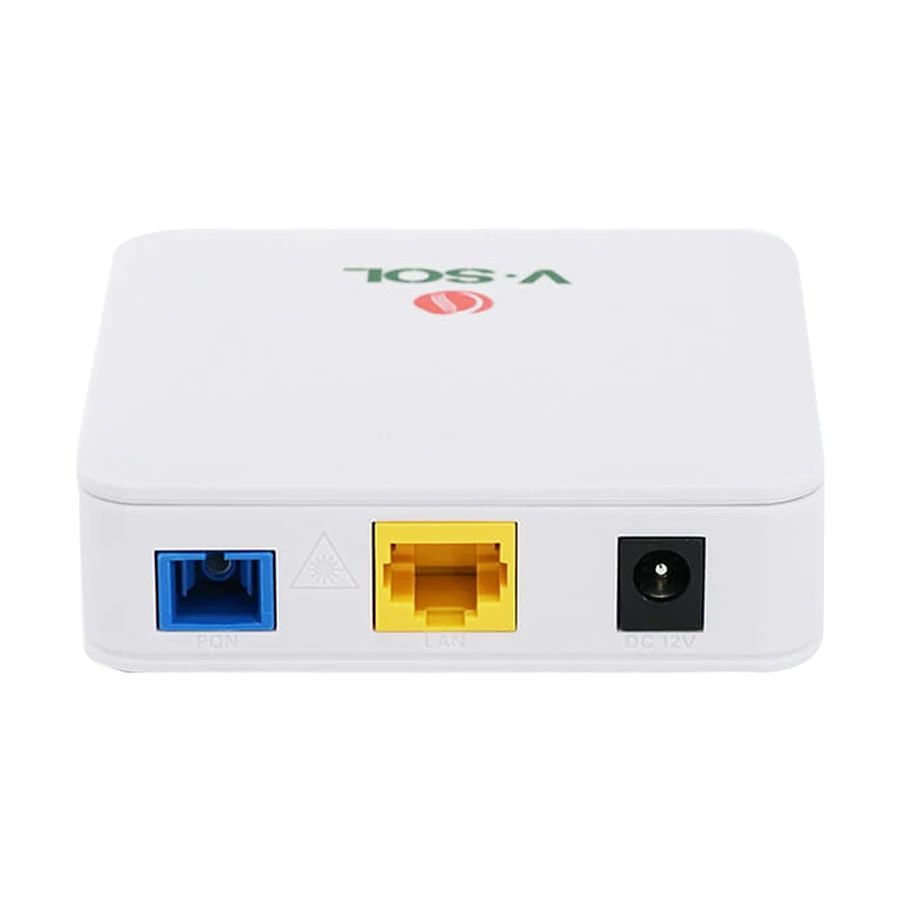

| Brand | V-Sol |
| Model | V2801SG |
| PON Type | X-PON |
| PON Interface/Port | 1G X-PON |
| PON Port Connector Type | Unmentioned |
| PON Port Interface Type | SC/UPC |
| PON Port TX Power | 0 to +4dBm |
| PON Port Rx Sensitivity | -27dBm |
| PON Port Saturation Optical Power | -3dBm (EPON) or -8dBm(GPON) |
| Ethernet Interface | 1 x 1000Mbps RJ45 LAN |
| Network Management | OMCI, WEB, Telnet, OAM |
| Management Function | Support CTC OAM 2.0 and 2.1, Support ITUT984.x OMCI, Support WEB, Support TELNET, Support CLI |
| Power Consumption (Approx) | <-4W |
| Power Supply | DC 12V, 0.5A, external AC-DC power adaptor |
| Dimension | 82 x 82 x 25mm |
| Weight (Kg) | 0.085 Kg |
| Product Warranty | 12 Months Official Warranty (Without Adapter) |
